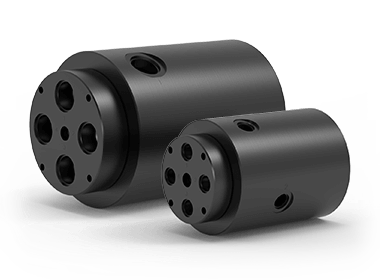

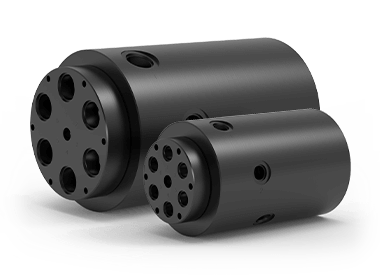

The HVH Series multiple passage rotary unions are available in either 4 or 6 flow passage models. Designed for heavy equipment and outdoor-use applications, the HVH Series has large diameter flow passages suitable for vacuum and bidirectional pressures up to 5,000 PSI [345 BAR].

The heavy-duty construction consists of an alloy steel shaft, ductile iron housing and black oxide coating for improved corrosion protection making the HVH Series an ideal solution for tough, outdoor environments such as forestry, mining and construction industries.

All models come standard with SAE-ORB axial shaft connections and SAE-ORB radial housing connections.

Need to combine fluid with electrical power, signal and/or data transfer? No problem. The HVH Series rotary unions are designed to integrate directly with our standard electrical slip rings. See options.

Available Configurations

Technical Specifications

Maximum Pressure 5,000 PSI [345 BAR]
Maximum Speed 20 RPM
Maximum Vacuum 30 HG
Temperature Range 0° F to 220° F [-18° C to 105° C]
Suitable Media* Air/Gas, Oil/Hydraulic
Connection Type SAE-ORB
HVH Series Rotary Unions - Housing Material
Housing: Material (Plating/Coating) Ductile Iron (Black Oxide)
HVH Series Rotary Unions - Shaft Material
Shaft: Material (Plating/Coating) Alloy Steel (Black Oxide)

*Oil/Hydraulic media must be petroleum-based. Please consult with DSTI for approval. All values listed under Technical Specifications are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle. Applications with temperatures above 220° F (105° C) require alternative seal materials. The use of Water media with temperatures above 212° F (100° C) require alternative seal materials. Please consult with DSTI regarding your specific application requirements.

Available Options

Available Custom Modifications for HVH Series Rotary Unions

Custom Modifications

Easier and less expensive than you may think. We can modify our standard products to fit your project requirements.

Learn More
Electrical Slip Rings for HVH Series Rotary Unions

Electrical Slip Ring Integration

Get the complete package. We offer a wide range of electrical slip rings designed to directly integrate with our HVH Series rotary unions.

View Options
